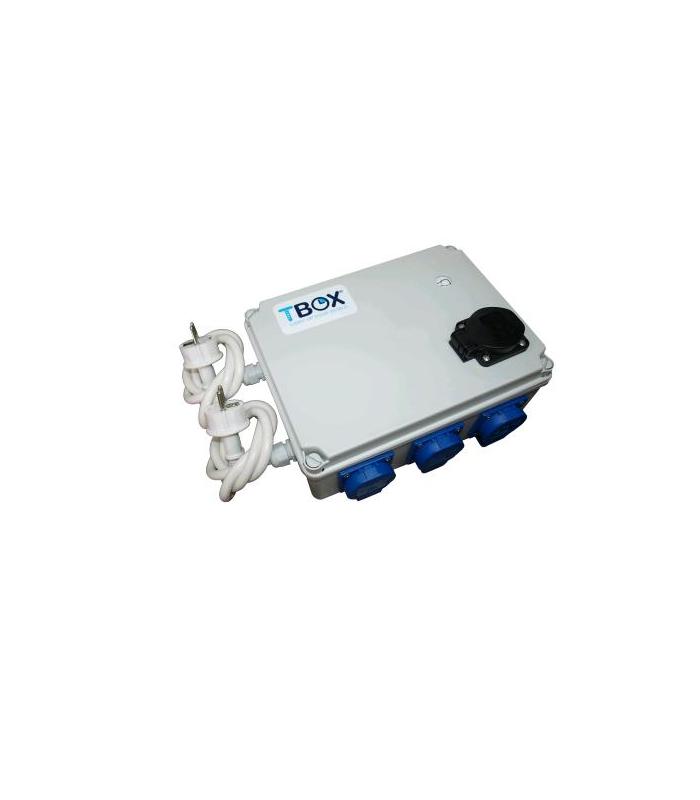

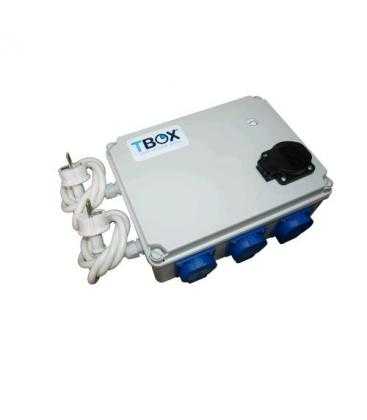

TEMPOBOX - SMARTBOX 8H

ELECTRIC CONTROL UNIT + HEATING - SMART BOX 8H
Timer Box + Heating controllable by Smartphone APP is the multi-phase timed electrical panel capable of controlling a maximum of 630w, 8 of 600w, 12 of 400w or 16 of 315w.

It incorporates an auxiliary heating plug in the upper part, which is activated when the remaining plugs are off, allowing us to maintain, through a heater, the ideal room temperature.

TECHNICAL CHARACTERISTICS:
? Smart timer controlled by Tuya Smart app.

Dimensions: 241 x 180 x 95 mm. (LxWxH).
Voltage required: 230 Vac / 50 Hz.
Maximum power: 2 x 2,520w.
Maximum power auxiliary socket: 2400 W.
Analog timer.
48 h charge reserve.
IP protection: IP20.

CONNECTION TIPS
? To manage SMARTBOX from your smartphone, follow these steps:
? Make sure you have access to the Internet with a 2.4G Wi-Fi, otherwise you will not be able to use the device.
IMPORTANT: If you are connected to a 5G Wi-Fi network, you will have to disconnect and forget the network in your device before starting the process.
? Install the Tuya Smart app on your mobile device
? Connect the SMARTBOX to stream
? Open Tuya Smart - Add device - select Change (Wi-Fi).
? Enter the data of your WIFI network, remember that if it is not 2.4 G you will not be able to connect the device - Next
? The app asks you to confirm the type of flashing of the switch - Verify.
? Long press the button for 5 seconds, the light will start to flash quickly.
? Confirm the fast flashing - Next.
? Now you are ready to program the device.
