TEMPOBOX - SMARTBOX 12

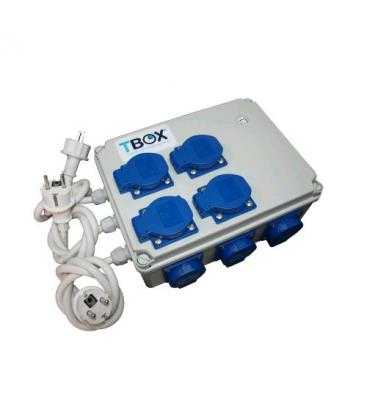

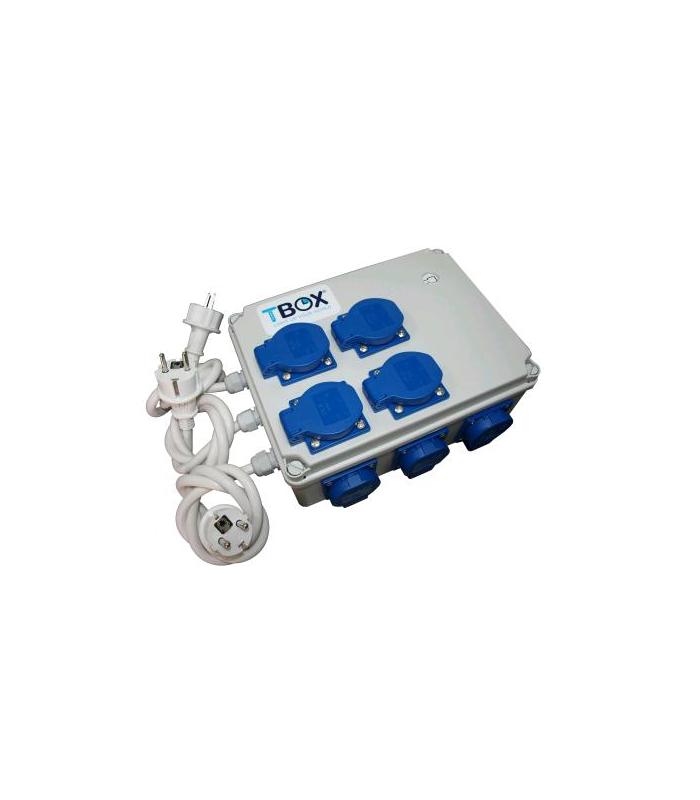

ELECTRIC CONTROL UNIT - SMART BOX 12
Timer Box controllable by Smartphone APP is the multi-phase timed electrical panel capable of controlling a maximum of 12 accessories of 630w, 12 of 600w, 16 of 400w or 24 of 315w.

TECHNICAL CHARACTERISTICS:
• Smart timer controlled by Tuya Smart app.

Dimensions: 241 x 180 x 95 mm. (LxWxH).
Required voltage: 230 Vac / 50 Hz.
Max. output: 2,520 w per line.
Analogue timer.
Power reserve 48 h.
IP protection: IP20.

CONNECTION TIPS
• To manage SMARTBOX from your smartphone, follow these steps:
• Make sure you have access to the Internet with a 2.4G Wi-Fi, otherwise you will not be able to use the device.
IMPORTANT: If you are connected to a 5G Wi-Fi network, you will have to disconnect and forget the network in your device before starting the process.
• Install the Tuya Smart app on your mobile device
• Connect the SMARTBOX to stream
• Open Tuya Smart - Add device - select Change (Wi-Fi).
• Enter the data of your WIFI network, remember that if it is not 2.4 G you will not be able to connect the device - Next
• The app asks you to confirm the type of flashing of the switch - Verify.
• Long press the button for 5 seconds, the light will start to flash quickly.
• Confirm the fast flashing - Next.
• Now you are ready to program the device.
